The 200X pressure reducing valve consists of main valve and pilot valve. The main valve is mainly composed of valve seat, main valve disc, piston, spring and other parts. The pilot valve is mainly composed of valve seat, valve ring, diaphragm, spring, adjusting spring and other parts.

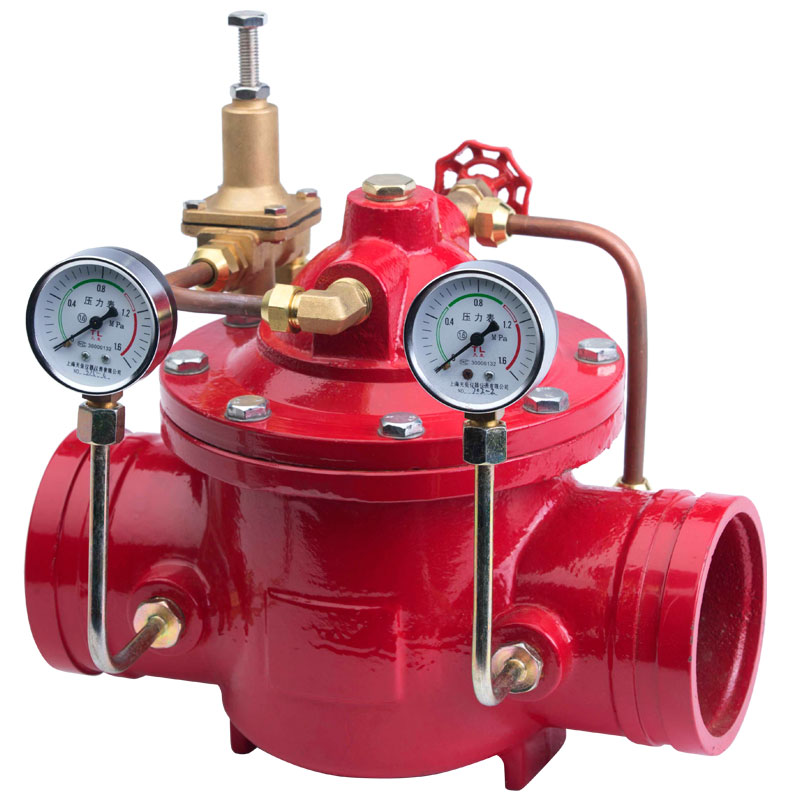

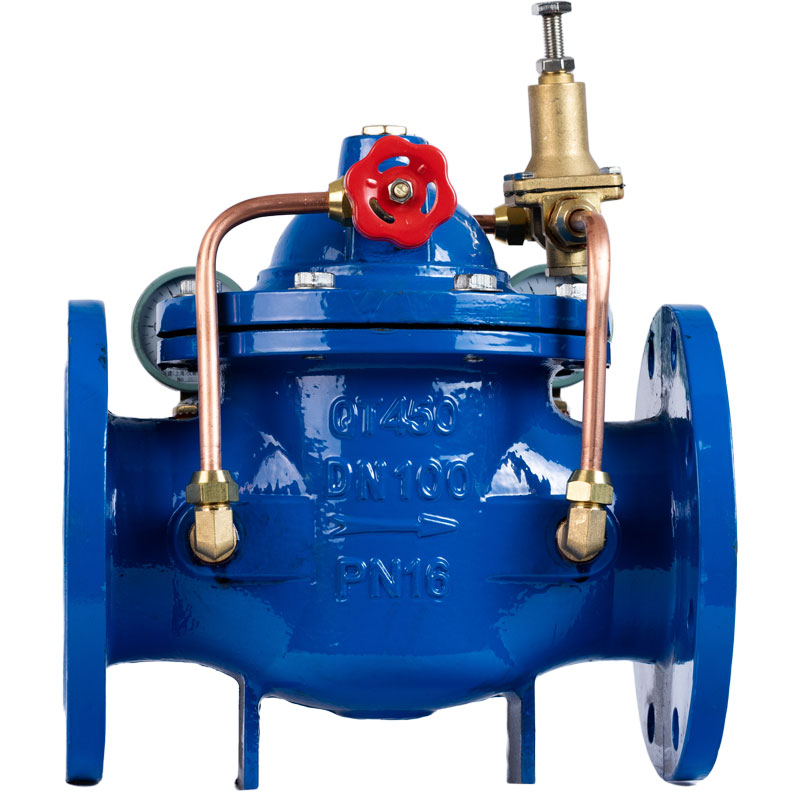

200X Pressure Reducing Valve
Product Overview
The 200X pressure reducing valve consists of main valve and pilot valve. The main valve is mainly composed of valve seat, main valve disc, piston, spring and other parts. The pilot valve is mainly composed of valve seat, valve ring, diaphragm, spring, adjusting spring and other parts. Set the inlet and outlet pressure by adjusting the spring pressure, sense the change of outlet pressure by the diaphragm, drive the piston to adjust the size of the flow area of the throttling part of the main valve through the opening and closing of the pilot valve, so as to realize the function of pressure reduction and stabilization.
