• Hot



  BS5153 Swing Check Valve Metallic Seat PN16

  Product DescriptionWorking Pressure:16kg/cm²Shell Test Pressure:24kg/cm²Seat Test Pressure:18kg/cm²Media:Water,Neutral OilWorking Temperature:0-52°C100％ Fusion Bonded Epoxy Coating for Inner and Outside SurfaceFlange Drilled According to EN1092 PN10,PN16Size:DN50--DN300Product OverviewThe

  Send Email Details
• Hot



  Ball Check Valve

  The ball check valve adopts a rubber-coated ball as the valve disc, which can roll back and forth on the slideway in the valve body to open or close the valve. The main features of the ball check valve are large flow capacity, small flow resistance pressure loss, good sealing performance, silent closing and reducible water hammer wave. It can be installed horizontally or vertically, the low resistance ball check valve can be used at the pump outlet of cold water, hot water, industrial and domestic sewage pipe networks to prevent medium backflow.

  Send Email Details
• Hot

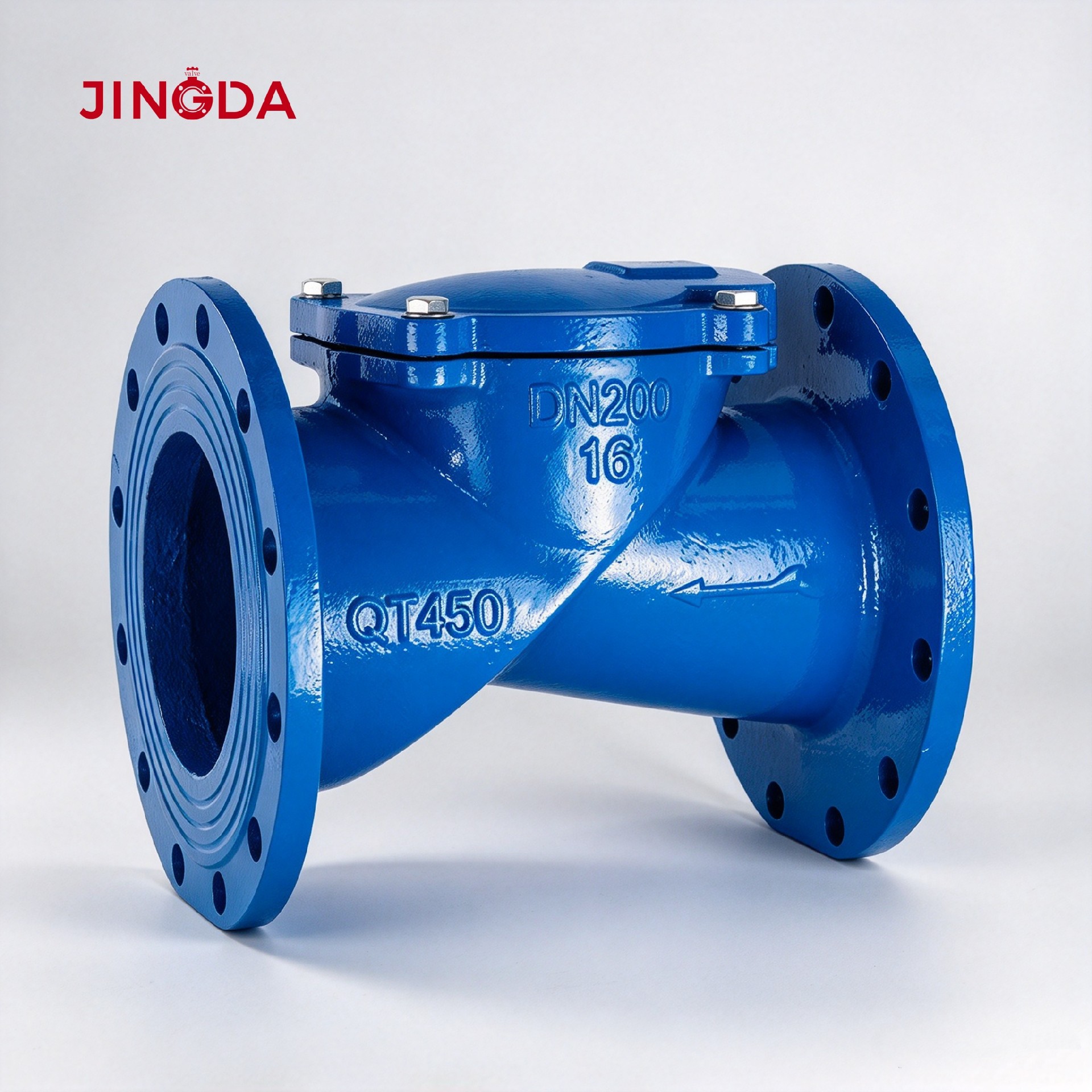

  Flange Rubber Flap Check Valve

  The Flange Rubber Disc Check Valve is a high-efficiency one-way check valve designed for steady pipeline operation. Equipped with a flexible rubber disc and standard flange end connection, this valve enables quick installation, tight sealing and silent closing, effectively eliminating water hammer and avoiding medium backflow.

  Send Email Details
• Hot

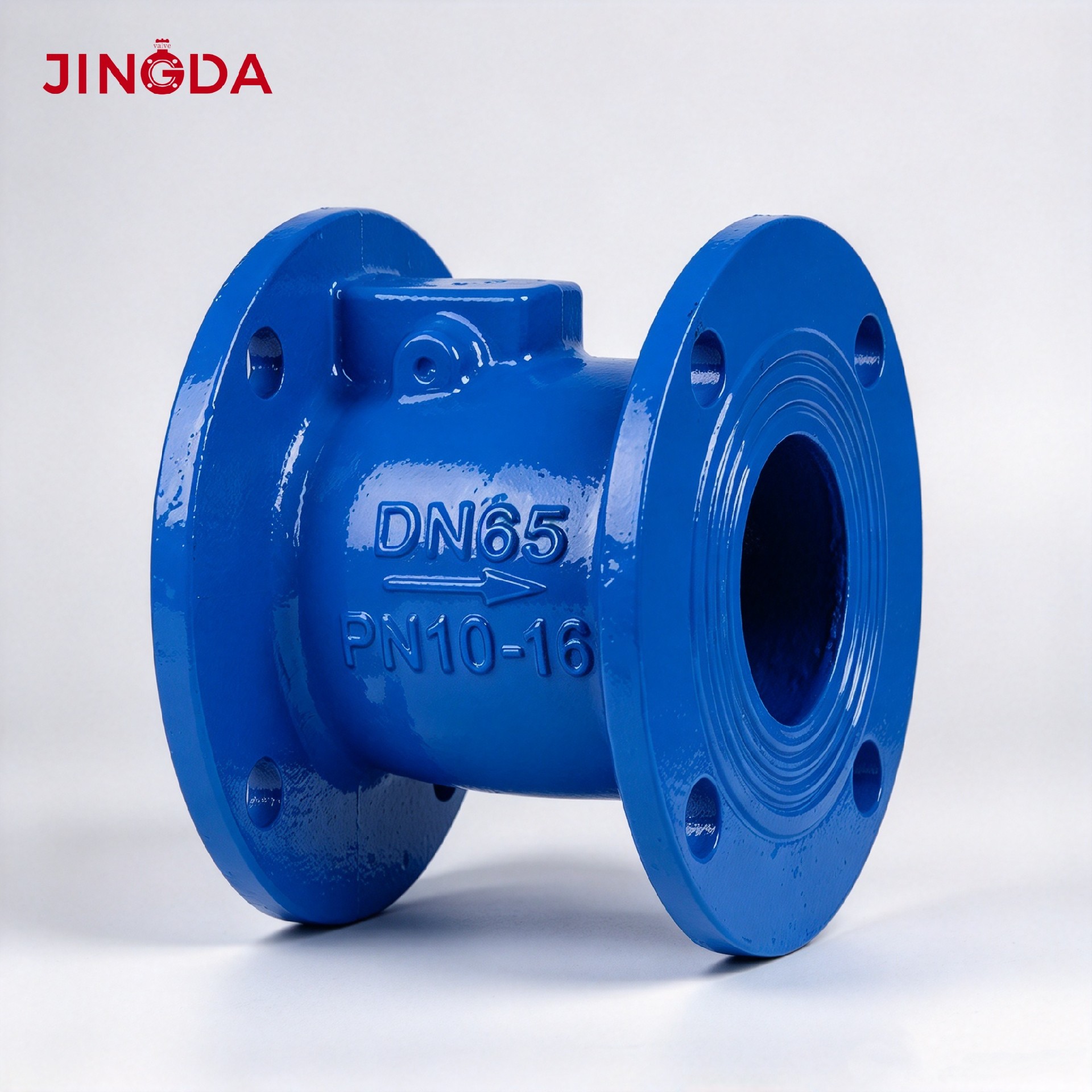

  New Type Check Valve

  Product OverviewGenerally applicable to media without solid particles and high viscosity, a strainer should be installed in front of the check valve if there are impurities.

  Send Email Details
•

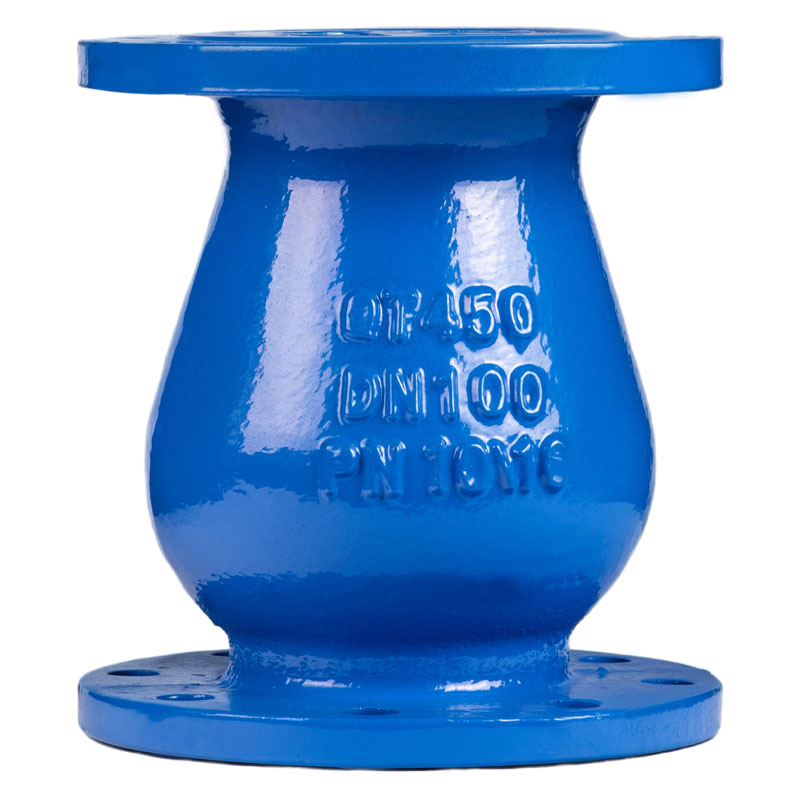

  Flange Silent Check Valve

  Prevent medium backflow and water hammer damage to pumps. The internal flow channel adopts a streamline design with minimal pressure loss, the valve disc opening and closing stroke is very short, it can be closed quickly when the pump stops to prevent huge water hammer noise and form a quiet effect.

  Send Email Details
•

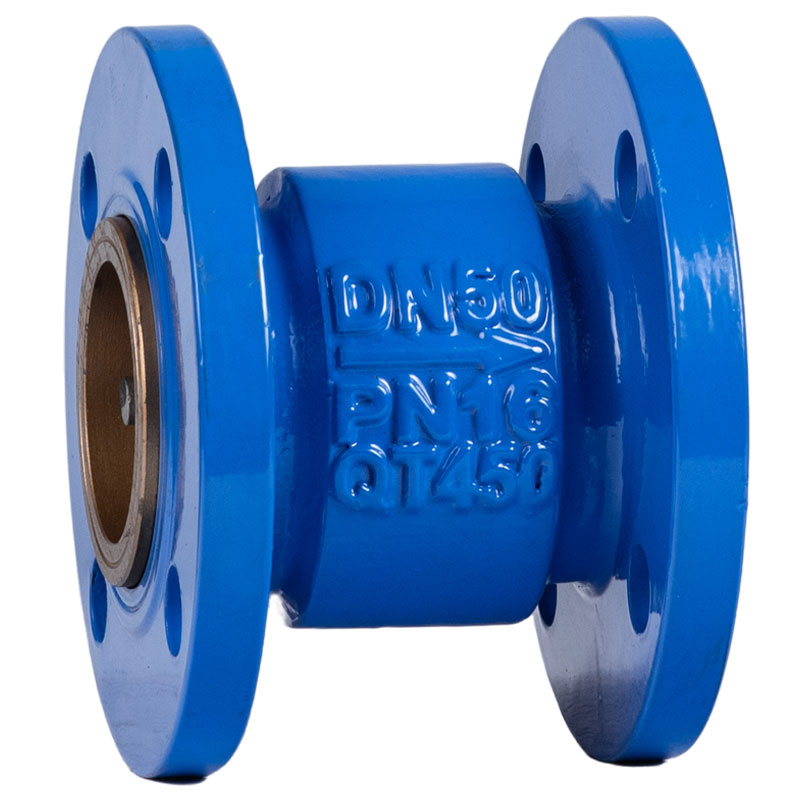

  Flange Silencer Check Valve

  Also known as vertical check valve, applicable to water supply and drainage pipelines. The valve disc is spring-loaded, its fast closing can effectively eliminate water hammer, good sealing performance and no noise when closing. It has the advantages of small volume, light weight, small fluid resistance, fatigue resistance and long service life.

  Send Email Details
