Signal Grooved Butterfly Valve with Worm Gear

This valve is manufactured in China and fully compliant with Chinese national fire safety standards. It has passed rigorous quality and safety testing, including CCCF (China Compulsory Certification for Fire Products), ensuring reliable performance and long service life. While it is certified for the Chinese domestic market, it meets international design and quality specifications and can be used in many projects worldwide where local certification is not mandatory.

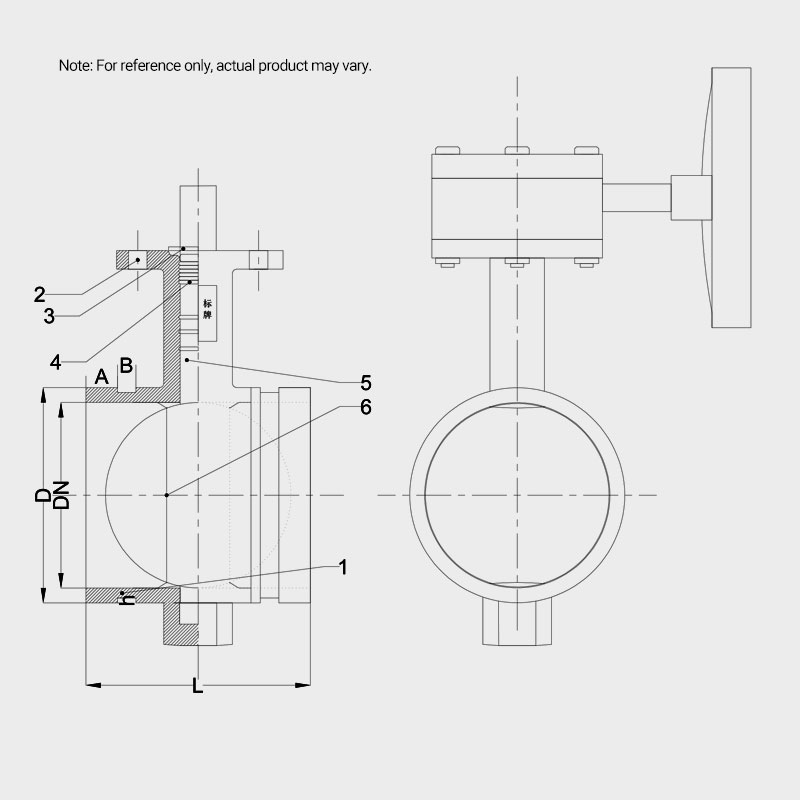

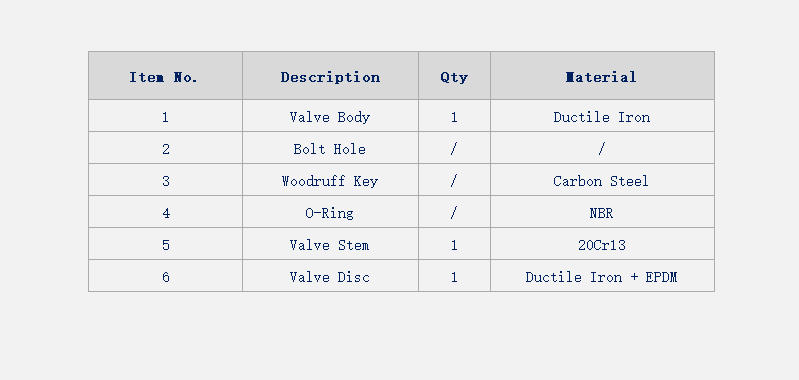

Components and Materials List of Lever Grooved Butterfly Valve

————————————————————————————————

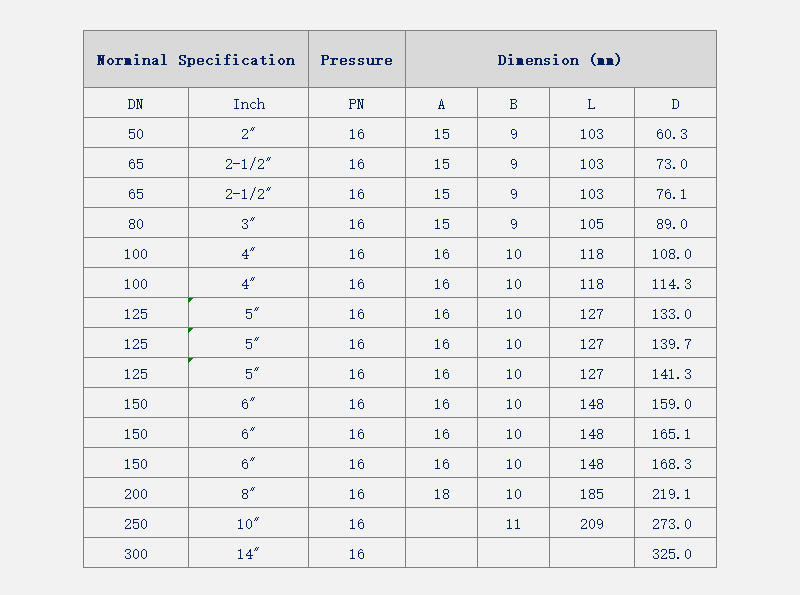

Dimension & Technical Specification of Grooved End Butterfly Valve

——————————————————————————————————

Core Advantages of Manual Lever Operated Grooved Butterfly Valve

——————————————————————————————————

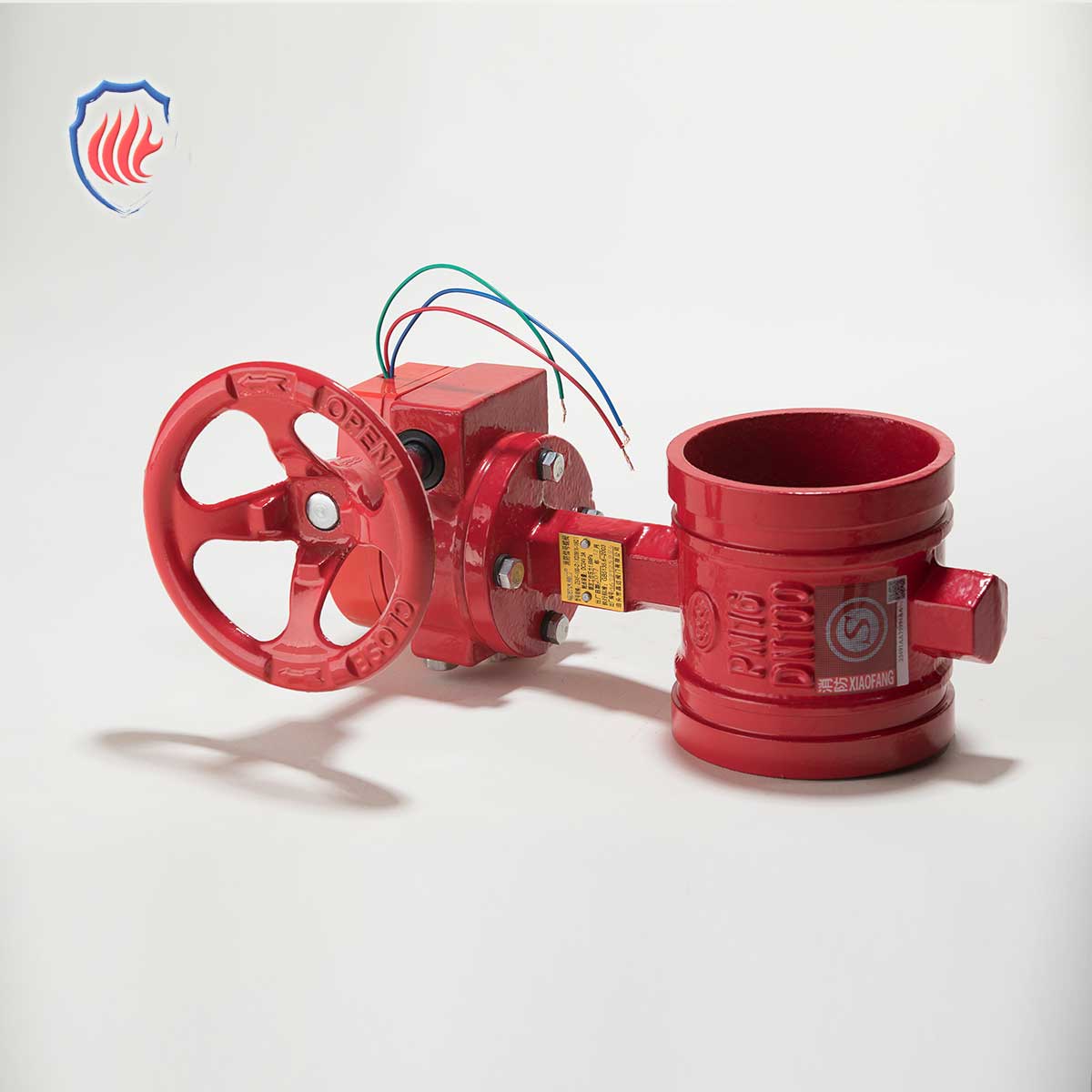

Worm Gear Grooved Signal Butterfly Valve (XD381X-16Q)

• Labor-Saving Worm Gear Operation & Self-Locking Positioning – The XD381X-16Q worm gear grooved signal butterfly valve adopts worm gear transmission structure to greatly reduce operating torque. The self-locking mechanism holds the valve steadily at any opening position. It supports frequent switching and flow adjustment, ideal for fire protection, water supply and HVAC grooved pipeline systems.

• Compact Integrated Grooved Structure, Quick Weld-Free Installation – This signal butterfly valve features compact, lightweight body with short face-to-face dimension. Standard grooved ends enable fast field assembly without welding. It occupies minimal space and adapts well to narrow pipe galleries and ceiling piping in fire fighting networks.

• Bubble-Tight EPDM Resilient Sealing & Long Service Life – Equipped with high-performance integrated EPDM seat, the valve maintains reliable zero-leak sealing under low-pressure conditions. The anti-ageing, wear-resistant sealing system delivers consistent tightness for long-cycle operation of fire sprinkler and domestic water pipelines.

• Streamlined Valve Disc for Low Flow Resistance – The hydrodynamically optimized streamlined disc cuts fluid turbulence and pressure loss. A large effective flow area is available when fully open, improving water delivery efficiency for circulating water and fire service piping.

• Real-Time Signal Feedback for Intelligent Fire Monitoring – Fitted with high-sensitivity micro signal switches, the valve feeds back full-open/full-closed status to fire control systems instantly. It enables remote valve status monitoring and meets intelligent management requirements of building fire protection engineering.

Grooved Butterfly Valve CNC Machining Process | Jingda Valve Production

_______________________________________________________________________

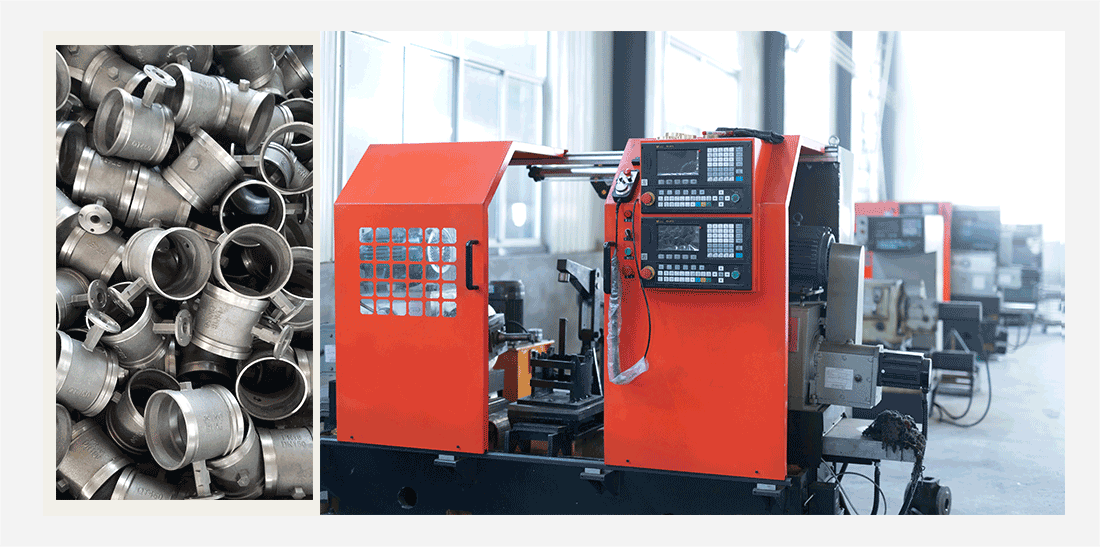

JINGDA adopts CNC precision lathe for grooved butterfly valve body machining to ensure precise groove dimension for fire protection grooved pipe connection.

Surface Polishing & Deburring for Lever Grooved Butterfly Valve

_______________________________________________________________

All QT450 cast valve bodies go through polishing process to remove burrs, improve corrosion resistance and sealing matching precision.

Hydrostatic Pressure Test & Leakage Inspection of Grooved Fire Butterfly Valve

_____________________________________________________________________________

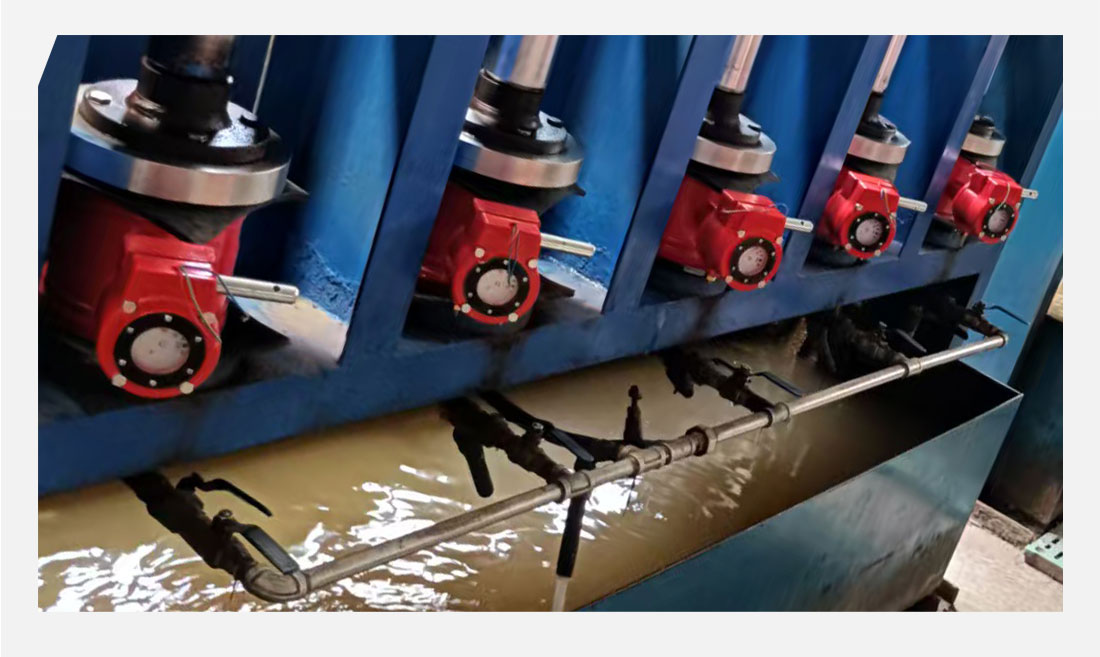

Every finished grooved lever butterfly valve undergoes 1.5PN hydrostatic pressure leakage test to meet CCCF fire valve standard requirements.

Complete Assembly Flow of Manual Grooved End Butterfly Valve

____________________________________________________________

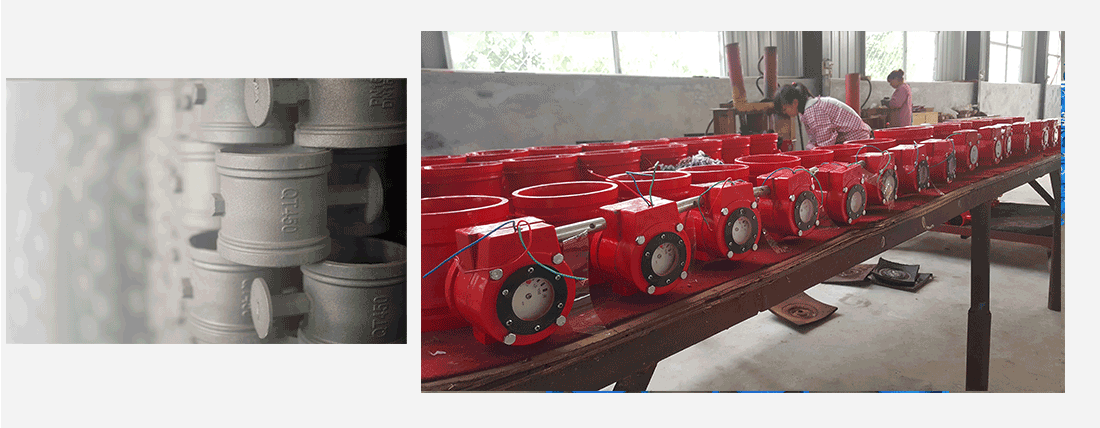

Professional workers assemble disc, EPDM seat, stem and lever strictly following standard assembly procedure for long service life.

About Jingda Valve | Professional Grooved Butterfly Valve Manufacturer from China

__________________________________________________________________

Botou Jingda Valve Co., Ltd. is a professional manufacturer specialized in producing high-quality valves. The company has advanced internal management standards and enjoys a high reputation in the casting industry with 15 years of production experience.

We own a modern factory, sophisticated manufacturing, processing and testing equipment, as well as strong technical strength. Our factory employs skilled technicians and operators, with a total staff of 100 people. Our products have passed ISO 9001:2015 and CE certifications.

Our main products include butterfly valves, gate valves, ball valves, check valves, Y-type strainers, rubber joints, Pipe Fittings,etc.

With high-quality products and a complete service system, our products are exported to dozens of countries and regions, including Europe, America, Southeast Asia, the Middle East, Australia, North Africa, South Korea, Hong Kong and Taiwan, with an annual export volume of 10 million US dollars.

Company tenet: Professional technical support and perfect after-sales service!

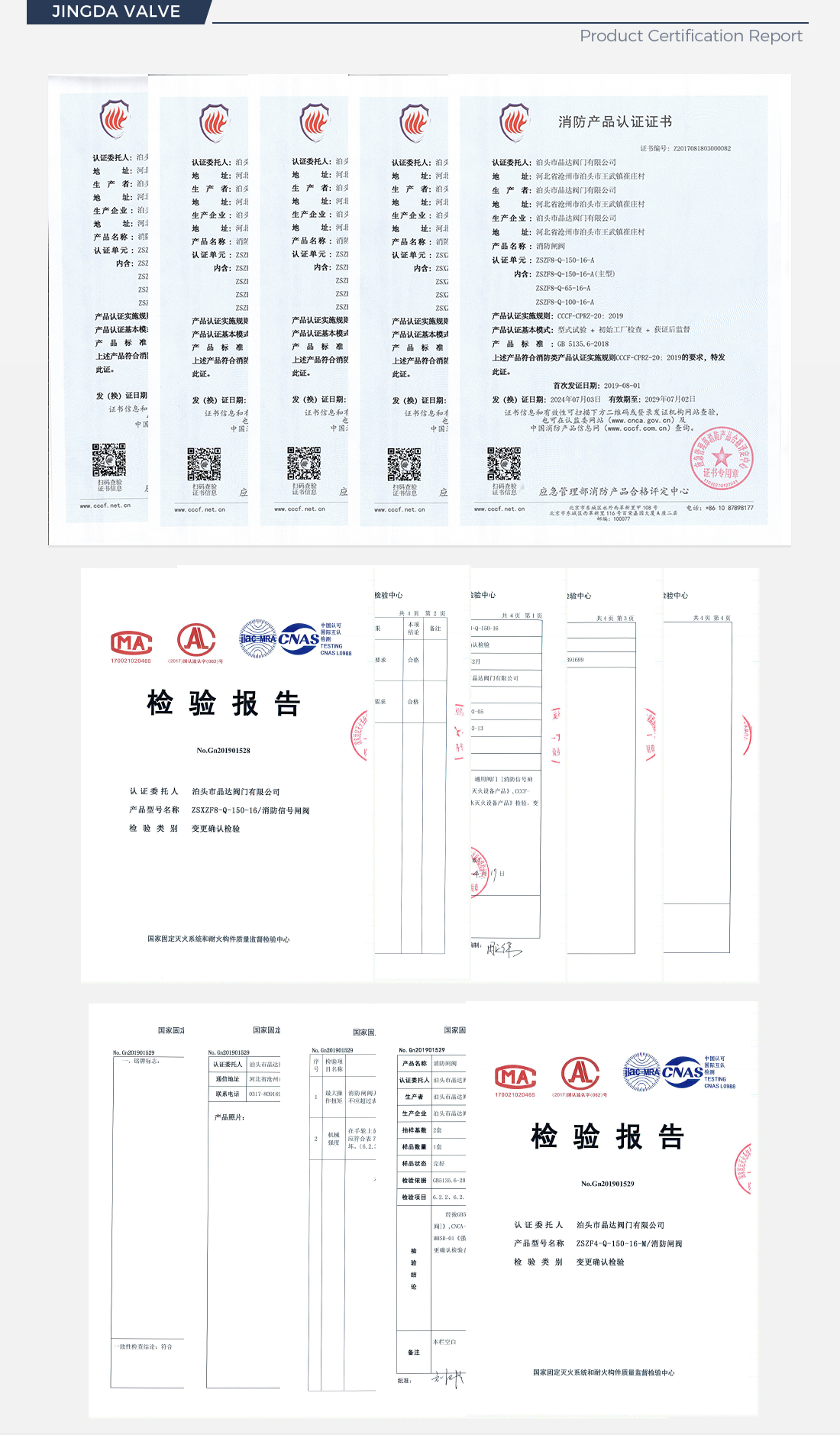

Jingda Valve Official Certifications & Third-party Test Reports
